5000 sq. ft – Shanghai Lodge
This timber frame accent home was designed for Whitehorse Yukon with a strong focus on insulation.
We designed exterior walls to be 2 layers of 2×4 frame walls with low and high density spray foam (R42), roof to be 16″ eng web truss rafters with high density spray foam (R84)!
A tulikivi wood furnace was installed at main floor with a large 2000 gallons heat reservoir water tank in basement mechanical room. Warmboard in floor heat was added to all framed floors.
This house was designed to withstand the extreme winters of the Canadian north!
If you have any questions with regards to your next log and timber construction project, please do not hesitate to contact us.

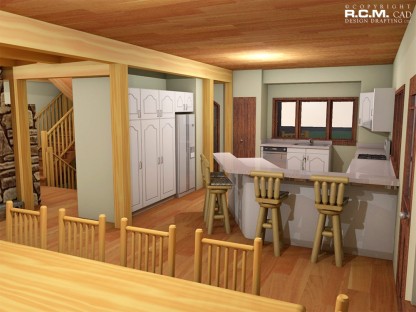

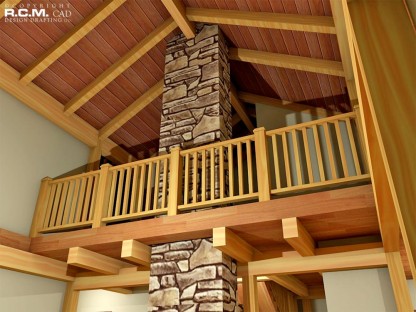

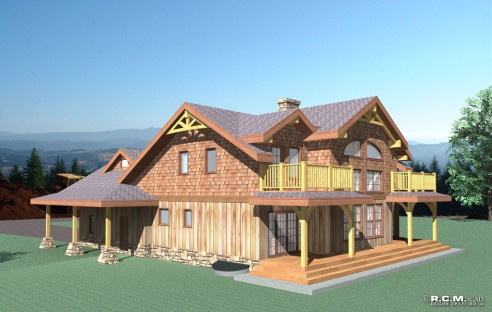

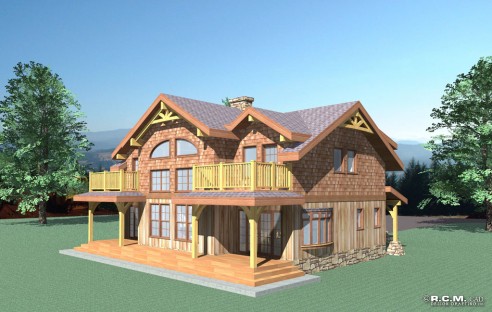

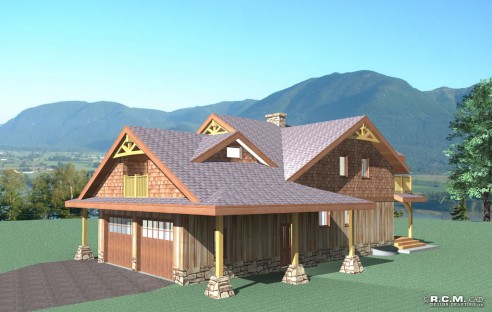

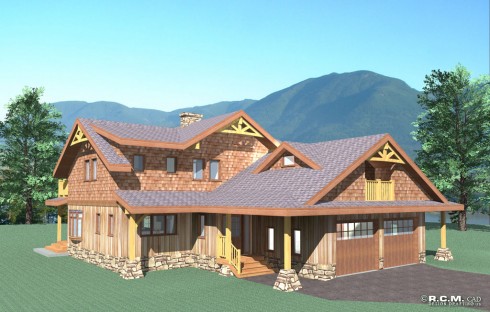

Please click on the images below to view a larger version of our 3d rendering.
RCM CAD DESIGN DRAFTING LTD is an architectural design firm primarily specializing in log and timber construction projects since 1993. Now with over one thousand designs completed in North America, Europe and Asia. For more information please contact Cyril on 1-604-705-4321 or our contact form.
