R.C.M. CAD DESIGN DRAFTING LTD is an building design firm primarily specializing in log and timber construction projects. We feature over 150 of our most creative designs categorized by living space total square footage.

Many of our  larger designs – 5000 Square Feet and above are now available as STUDY PLANS you can buy using your credit card with PayPal.

Certain projects constructed in British Columbia require the involvement of an architect.

Please Note: The study set of plans is meant to be a working tool for future home owners to mark up with ideas and changes to discuss with R.C.M. Cad Design. The sale of the study set of plans does not include any right or permission to use the study set of plans for drafting plans, nor for construction, nor for resale. All plans are protected under copyright.

As soon as PayPal payment is confirmed we will email you PDF files of construction set of plans so you may plot as many paper copies as you need for one construction project only, under customer’s name.

If you wish to apply changes to original design, apply local plan review redlines (example: California) and engineering redlines, email us a full list of changes and we will email you a quote for the work.

Almost all our design work is custom, to fit our customer’s needs, wants and budget, land topography and orientation to view and sun.

Our study plans include the following information:

  • Four coloured renderings of the home
  • Minimum two elevations with dimensions
  • Floor Plans with dimensions
  • The following permission: You are permitted to print a to-scale set of plans onto 2’x3′ paper (at your local printer), and/or to print them onto letter-size paper

If you have any questions regarding these floor plans, please do not hesitate to contact us.

Please click on the images below to see a larger version of the 5000 Square Feet and above floor plans.
Shanghai Lodge
5000 Sq. Ft.
(464.5 sq m)
Wentworth
5066 Sq. Ft.
(470.6 sq m)
Cixi Banquet
5087 Sq. Ft.
(471.8 sq m)
Kimberley
5258 Sq. Ft.
(488.4 sq m)

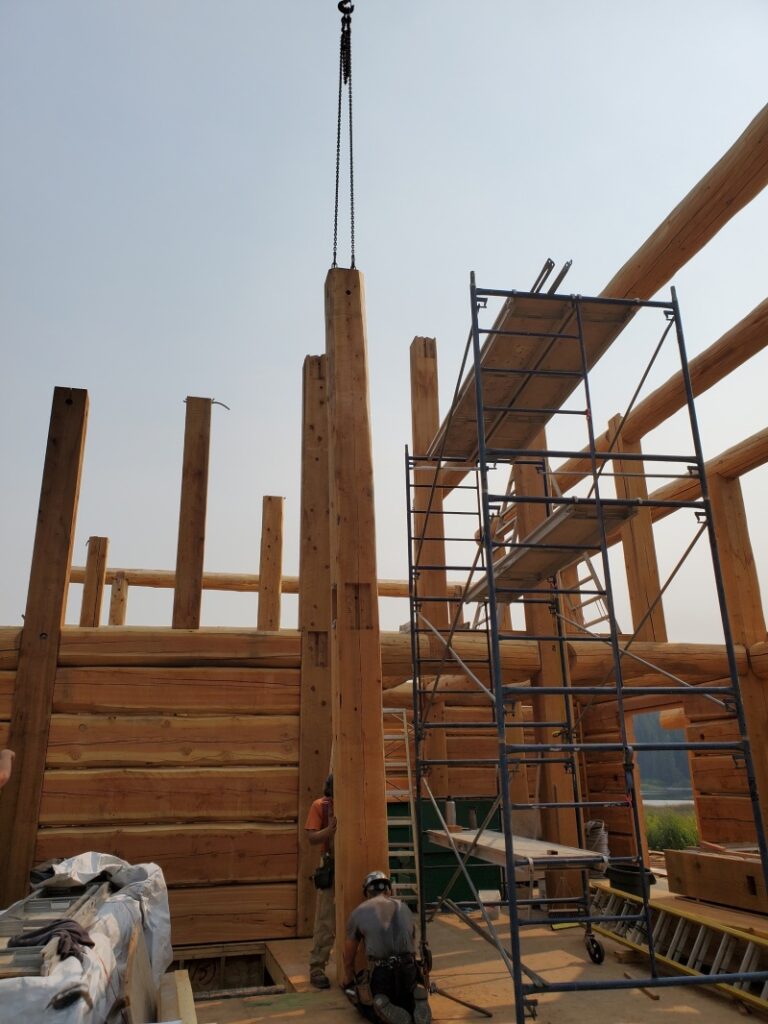

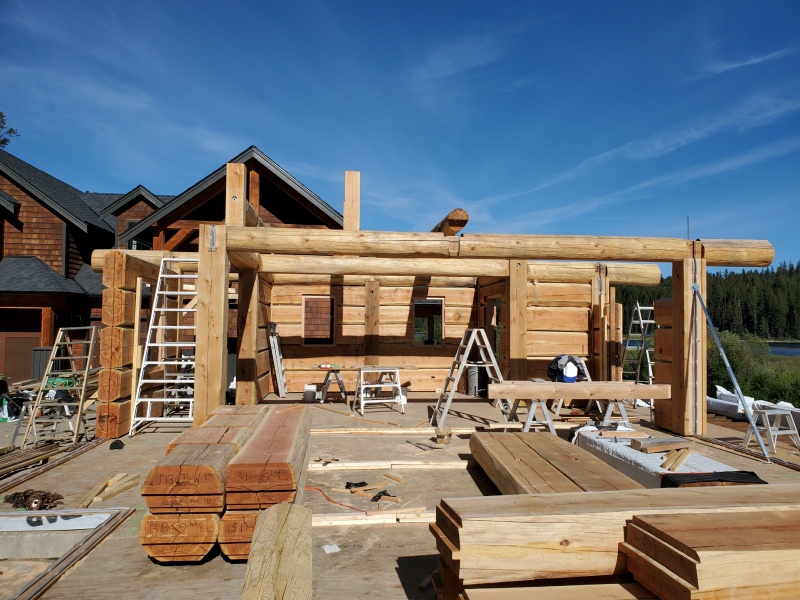

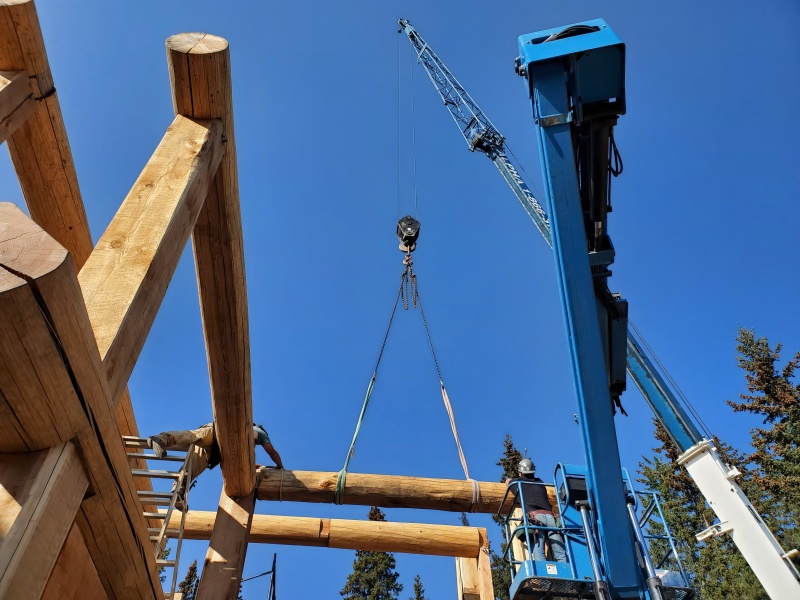

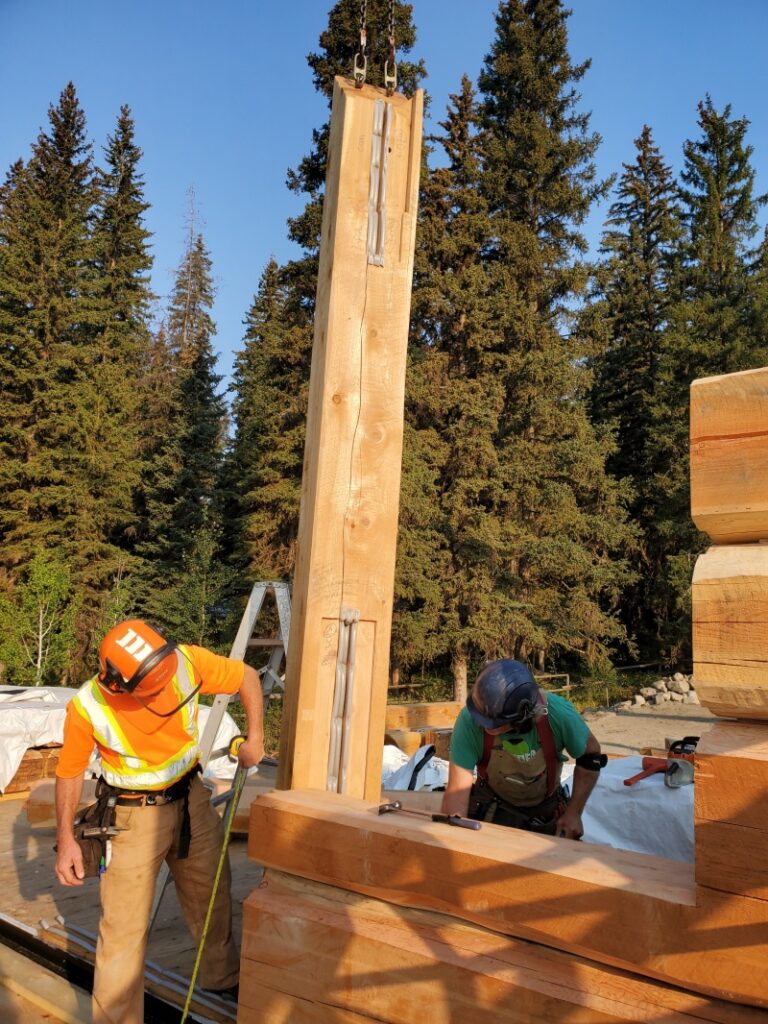

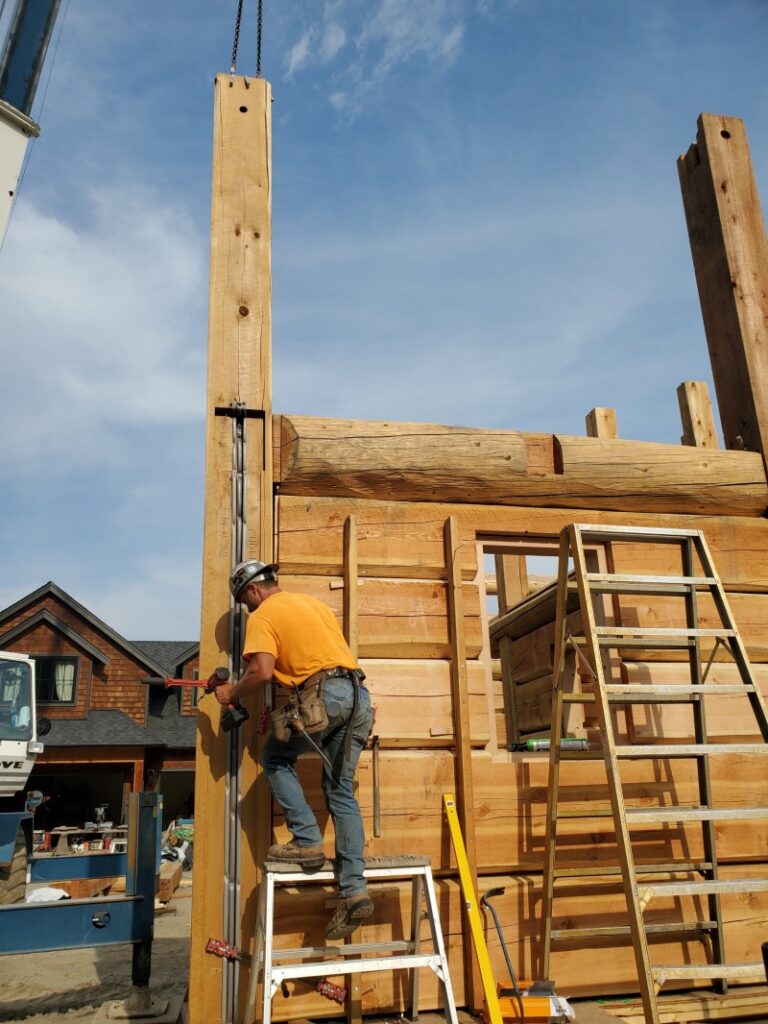

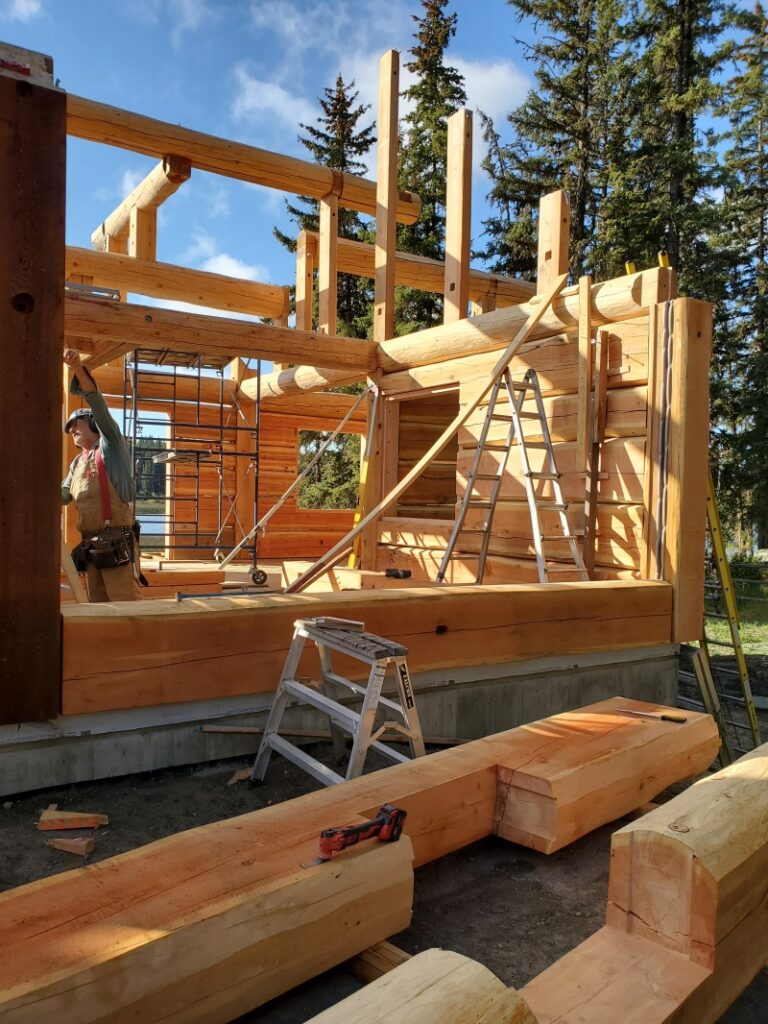

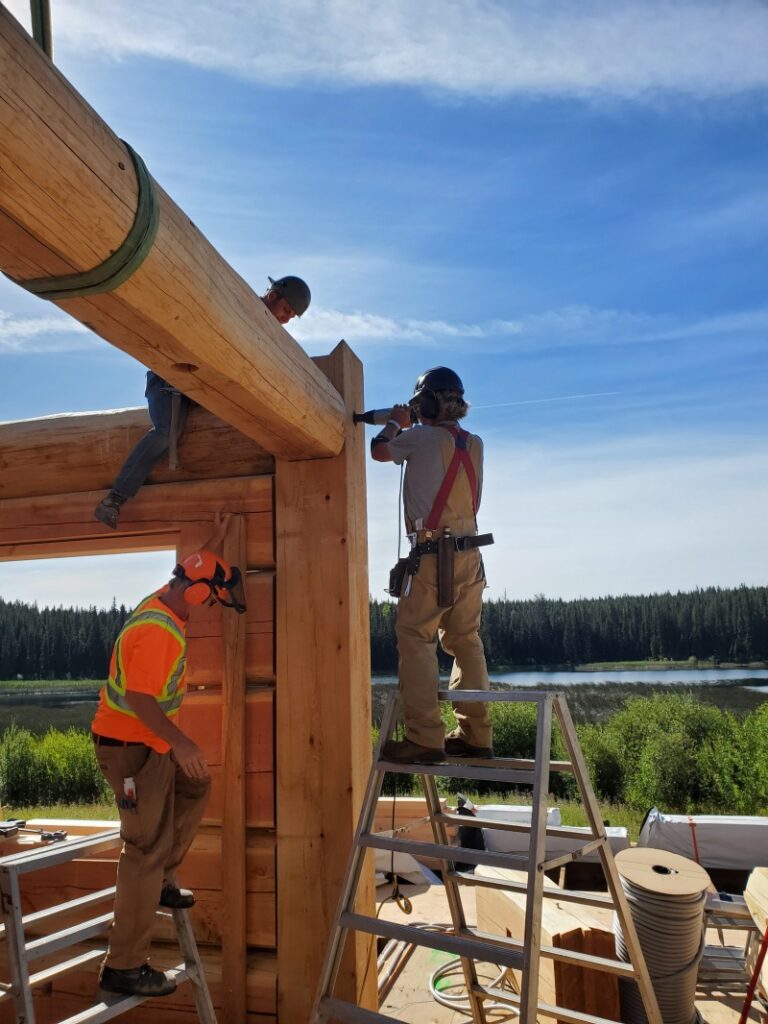

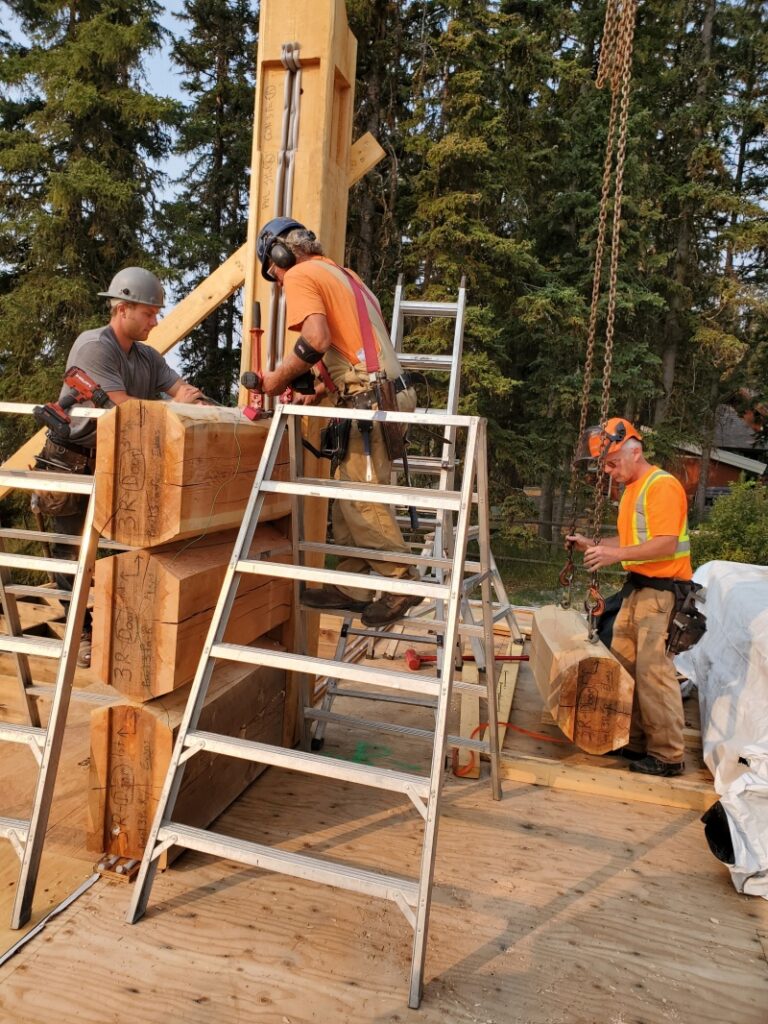

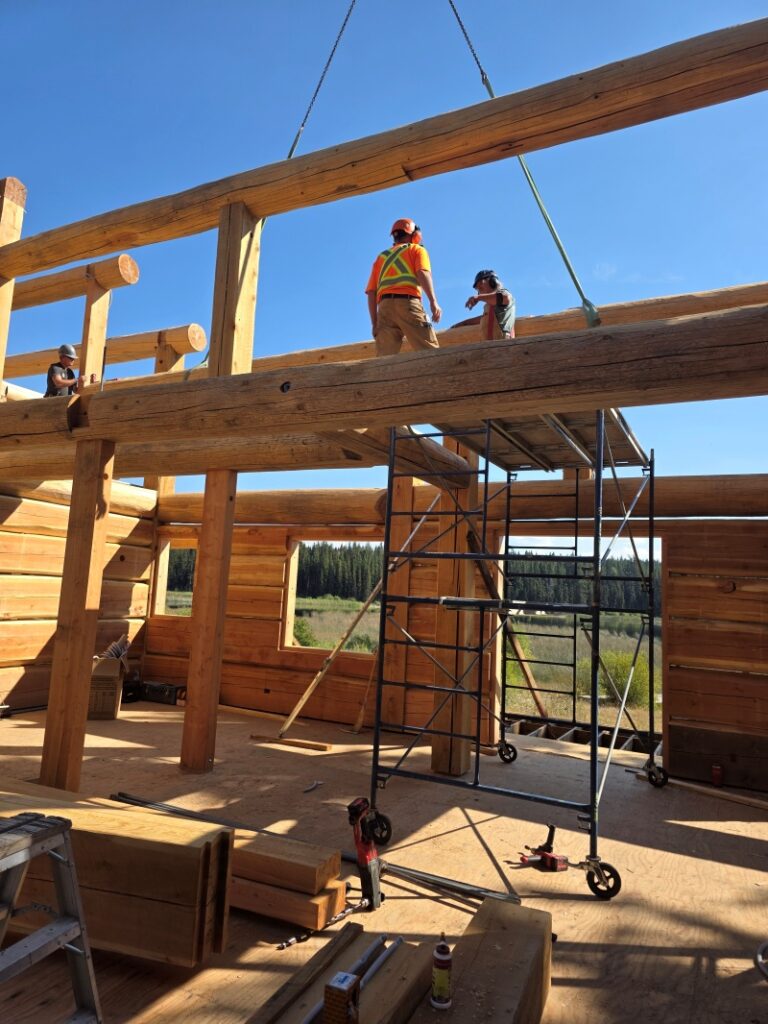

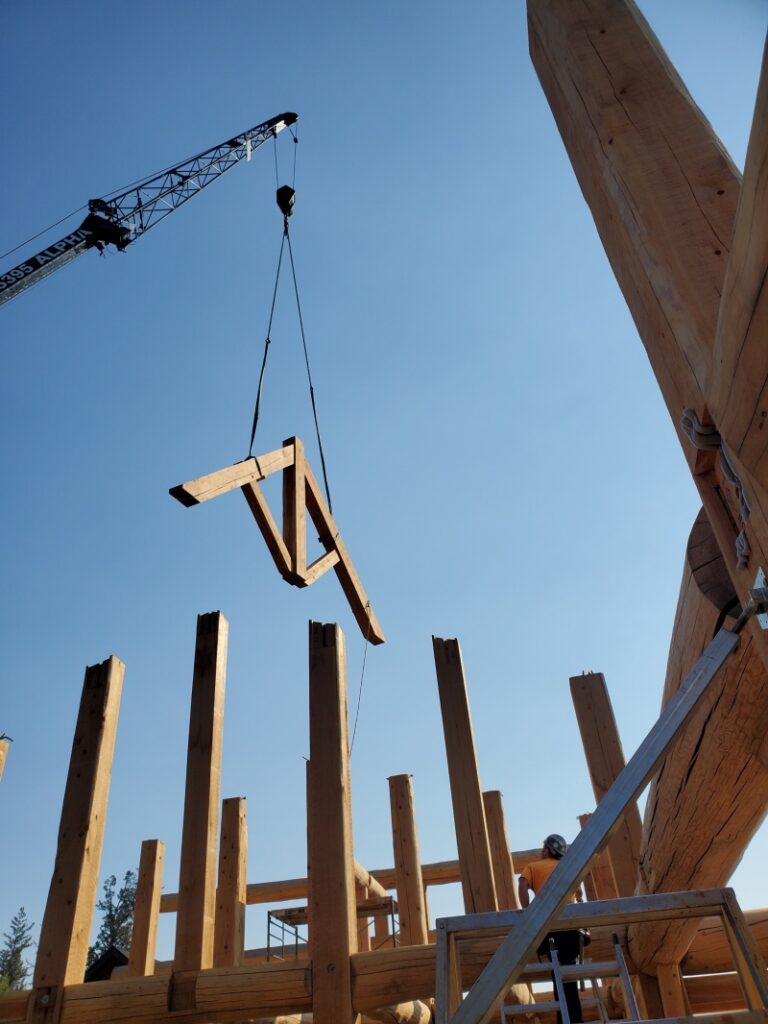

Lauder House
5380 Sq. Ft.
(499.8 sq m)
Prince Albert
5415 Sq. Ft.
(503.0 sq m)
Restaurant
5528 Sq. Ft.
(513.5 sq m)
Surrey
5536 Sq. Ft.
(514.3 sq m)
Caribe
5662 Sq. Ft.
(526.0 sq m)
Gabriel
5682 Sq. Ft.
(527.8 sq m)
Jefferson Trail
5705 Sq. Ft.
(530.0 sq m)
High Ridge
6444 Sq. Ft.
(598.6 sq m)
Richmond Flats
5858 Sq. Ft.
(363.0 sq m)
Big Stone Bay
5845 Sq. Ft.
(543.0 sq m)
Wilderness Retreat
7700 Sq. Ft.
(715.3 sq m)
Ensenada Lodge
8848 Sq. Ft.
(822.0 sq m)
Wyoming
9316 Sq. Ft.
(865.4 sq m)

Watch 3d Video

Wellness Lodge
9668 Sq. Ft.
(898.1 sq m)
JJ Ranch
9771 Sq. Ft.
(907.7 sq m)

View Finished Project

Cloverdale
11583 Sq. Ft.
(1076.1 sq m)
Simonton Lake
14148 Sq. Ft.
(1314.4 sq m)
Hawkeye
15281 Sq. Ft.
(1419.6 sq m)

Watch 3d Video

Salmon Lodge
17212 Sq. Ft.
(1599.0 sq m)
Volga Lodge
24000 Sq. Ft.
(2229.6 sq m)

Certain projects constructed in British Columbia require the involvement of an architect.
